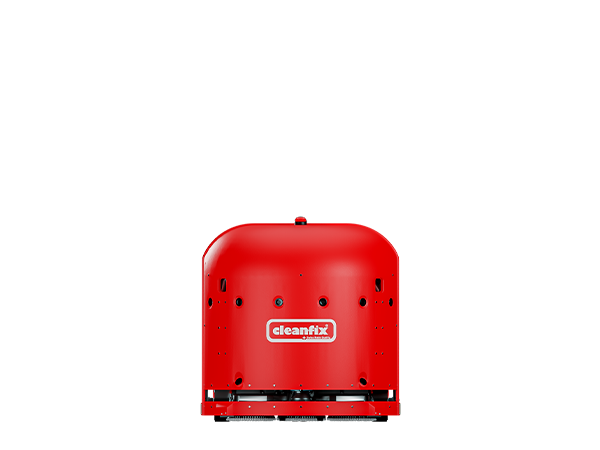

CleanFix RA660 Navi M
£ Please Enquire
Autonomous Floor Cleaning for Medium-Sized Facilities
- Intelligent autonomous vacuum-cleaning robot with docking station
- Three-Brush Cleaning System
- LiDAR Navigation for precise coverage and obstacle detection
See CleanFix RA660 Navi M in Action
Discover how CleanFix RA660 Navi M works and explore its key features, performance, and real-world applications in this short demonstration video.
Product Description
The RA660 Navi M combines autonomous navigation, intelligent route planning, and a high-performance three-brush scrubbing system to deliver efficient floor cleaning across medium-sized commercial and industrial environments. Designed for facilities where cleanliness and operational efficiency are essential, it provides consistent cleaning results with minimal manual intervention.
Using advanced BlueBotics ANT® navigation technology, the RA660 Navi M maps and navigates complex environments with precision while safely avoiding obstacles. Its integrated suction system, app-based management, and fast-charging lithium battery help maximise productivity and reduce downtime, making it ideal for daily cleaning operations.
Three-Brush Cleaning System
Three brushes are arranged in a specialised V-shaped configuration to direct water and debris efficiently towards the suction nozzle. This design helps deliver thorough cleaning results while maximising floor coverage.
Fast-Charging Battery
The high-capacity lithium battery provides up to 3.5 hours of runtime and can recharge to 80% in approximately 40 minutes, helping minimise downtime between cleaning cycles.
Compact, Agile Design
Designed specifically for medium-sized facilities, the RA660 Navi M can turn on the spot and operate effectively in narrow aisles and confined spaces that are difficult for conventional ride-on scrubber dryers to access.
FieldBots Integration
Seamless integration with the FieldBots app enables centralised management of fleets ranging from a single unit to several hundred robots, all within one platform. Multiple RA660 Navi M robots can be scheduled and coordinated concurrently, helping teams optimise coverage and maximise operational efficiency.
Works Well In
- Warehouses & Distribution Centres
- Manufacturing Facilities
- Hospitals & Healthcare Environments
- Universities & Educational Campuses
- Train Stations & Transport Hubs
- Shopping Centres & Retail Spaces
- Event Venues & Sports Halls
- Airports & Public Buildings
Works Well in
- Hotels
- Hospitals
- Office
- Hallways
- Wardrobes
- Retail Spaces
- Nursing Homes
- Rooms
- Entrance Areas
- Water tank capacity 45 L
- Charging time 40 min
- Battery running time 3.5 h
- Cleaning speed 0.6 m/s
- Working width (brushes) 660 mm
- Working width (suction nozzle) 850 mm
- Dimensions robot (L × W × H) 960 × 850 × 900 mm
- Water tank capacity 45 L
- Weight (with water) 260 kg
- Cleaning speed 0.6 m/s
- Brush contact pressure 31.5 g/cm²
- Cleaning performance 1250 m²/h
- Cleaning agent tank 2.5 L
- Recommended use From 500 m²
- Cleaning pattern Systematically
- Battery type Lithium-ion
- Battery capacity 120 Ah
- Battery life Up to 3.5 h
- Battery charging time 40 min (80%) / 60 min (100%)
- Communication WiFi, LTE
- Machine control HMI, App
- Remote access Yes (via app)
- Sensors Bumper, Ultrasonic, LiDAR
- Navigation system BlueBotics ANT® Lite+
- Software update OTA (Over-the-air)
