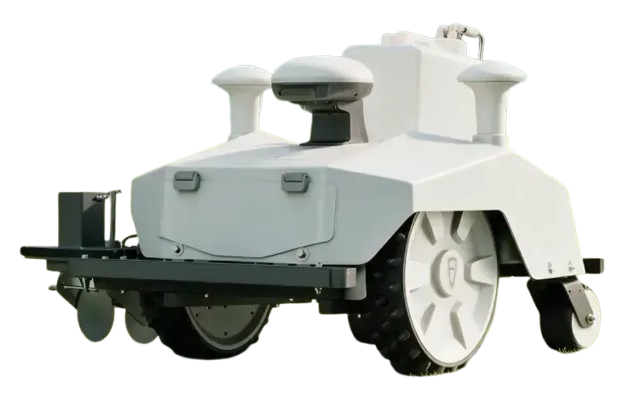

PaintMaster Pro
Accurate Pitch Marking Without the Repetitive Manual Work
- 250+ Field Templates & Custom Layouts
- Up to 50%+ Lower Paint Consumption
- 15+ Full-Size Pitches per Charge
The FJD PaintMaster Pro automates sports pitch line marking, helping grounds teams reduce the time spent measuring, setting out and repeatedly walking marking machines across pitches.
Operators can capture key reference points using the V4e Pro, select from more than 250 field templates or create a custom layout, review the route before starting and then send the task directly to the robot. Once deployed, PaintMaster Pro autonomously follows the planned route to deliver repeatable, consistent line marking across single or multiple sports pitches.
250+ Field Templates
Choose from more than 250 preconfigured field templates or create custom layouts for different sports, pitch dimensions and site requirements. The system also supports custom graphics and logo marking.
Plan Before You Paint
Pre-marking verification allows the operator to check pitch position, dimensions, marking order and the robot's planned route before paint is used. This helps identify setup issues before they create wasted paint or rework.
Reduce Paint & Labour Requirements
FJDynamics states that PaintMaster Pro can deliver 50%+ lower paint consumption and require 90%+ less labour compared with conventional marking workflows, while marking more than 15 full-size pitches on a charge.
Return, Refill & Resume
If paint runs low during a job, PaintMaster Pro can return to a designated refill point. Once refilled, it can continue the unfinished marking task without restarting the whole pitch.
Multi-Pitch & Fleet Management
Transition routes can be created between compatible pitches so the robot can move from one working area to another. Multiple robots can also be assigned and monitored where larger sports estates require additional capacity.
Remote Monitoring
Operators can monitor active tasks, marking progress and machine status remotely, making it easier for grounds teams to manage line marking alongside their wider maintenance programme.
Works Well in
- Schools & Academies
- Universities
- Football Clubs
- Rugby Clubs
- Sports Stadiums
- Multi-Pitch Sports Complexes
- Community Sports Facilities
- Council Sports Grounds
- Training Centres
- Event Venues
- Grounds Maintenance Contractors
- Weight 73.4 kg excluding paint
- Dimensions 1074 × 1023 × 672 mm
- Marking Speed 1–3 km/h
- Line Width 6–17 cm
- Nozzle Height 3–11 cm
- Paint Capacity 25 L standard
- Battery Capacity 1 kWh standard
- Battery Runtime Up to 10 hours
- Charging Time Approx. 4 hours
- Quick-Swap Battery Supported
- Connectivity 4G & Wireless
- Operation Tablet V4e Pro
- Operating Temperature 5–45°C
-
250+ Field Templates
Preconfigured layouts plus custom layouts, graphics and logos.
-
Plan Before You Paint
Verify pitch position, dimensions and route before any paint is used.
-
50%+ Lower Paint Consumption
With 90%+ less labour than conventional marking workflows.
-
15+ Full-Size Pitches per Charge
Up to 10 hours of battery runtime with quick-swap support.
-
Return, Refill & Resume
Continues the unfinished task after refilling without restarting the pitch.
-
Multi-Pitch & Fleet Management
Transition routes between pitches and multi-robot coordination.
-
Remote Monitoring
Track tasks, marking progress and machine status remotely.
