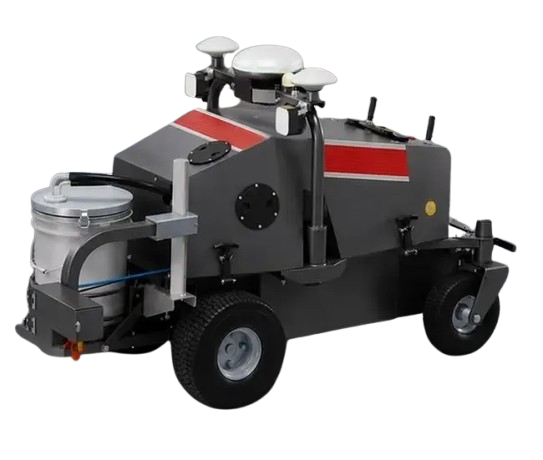

PaintMaster Parking
Smarter, Faster Autonomous Car Park Line Marking
- Autonomous High-Pressure Line Marking
- AI Vision-Based Alignment
- Digital Site Mapping & Route Planning
The FJD PaintMaster Parking brings autonomous robotics to car park and hard-surface line marking. It combines digital site capture, SiteMind planning, AI vision-based alignment and robotic high-pressure paint application to automate both new layouts and existing-line repainting.
Rather than manually measuring, pre-marking and repeatedly checking a site before painting, the area can be digitally captured, reconstructed and simulated before the robot begins work. This creates a more repeatable workflow for car parks, loading zones and large industrial sites while reducing repetitive manual line-marking work.
Digital Site Capture
Using the FJD Trion S2 Max scanner, the site can be digitally captured including its existing markings, obstacles, geometry and surface conditions. This reduces the amount of manual measuring and pre-marking traditionally required before striping begins.
Plan & Simulate Before Painting
SiteMind reconstructs parking spaces, aisles, arrows, boundaries and safety zones digitally. The proposed route, spray sequence, turning space and obstacle avoidance can then be reviewed before paint is applied.
AI Vision-Based Alignment
Vision-based alignment helps PaintMaster follow existing line edges, centre lines, parking-space boundaries, arrows and other site markings accurately when repainting existing layouts.
High-Pressure Autonomous Striping
PaintMaster applies high-pressure paint autonomously along the planned route, providing consistent line quality across both new layouts and repainting tasks.
With a marking speed of up to 4 km/h, adjustable line widths from 10–25 cm and a 19-litre paint tank, it is designed for professional large-area marking applications.
Built-In Safety
360° real-time monitoring works alongside physical collision protection to help the robot identify hazards and operate safely across open car parks and working environments.
Fleet & Remote Management
Operators can monitor machine status, marking progress and alerts remotely. Multiple robots can also be coordinated across larger car parks and multi-zone projects where additional capacity is required.
Works Well in
- School & University Car Parks
- Retail & Shopping Centre Car Parks
- Business Parks
- Industrial Estates
- Logistics Parks
- Warehouses & Distribution Centres
- Loading Bays & Loading Zones
- Hospital Car Parks
- Public-Sector Facilities
- Outdoor Commercial Car Parks
- Weight 210 kg
- Dimensions 1700 × 1120 × 980 mm
- Marking Speed 1–4 km/h
- Line Width 10–25 cm
- Paint Tank Capacity 19 L
- Maximum Paint Flow 2 L/min
- Maximum Pressure 20 MPa
- Battery Capacity 4 kWh
- Runtime Up to 6 hours
- Charging Time Approx. 4 hours
- Quick-Swap Battery Supported
- Connectivity 4G & Wireless
- IP Rating IPX4
- Operating Temperature 5–35°C
- Software Updates OTA
-
Digital Site Capture
Scan existing markings, obstacles and geometry with the FJD Trion S2 Max.
-
Plan & Simulate Before Painting
SiteMind reconstructs the layout and previews the route and spray sequence.
-
AI Vision-Based Alignment
Follows existing lines, boundaries and arrows when repainting.
-
High-Pressure Autonomous Striping
Up to 4 km/h with 10–25 cm adjustable line widths.
-
Built-In Safety
360° real-time monitoring with physical collision protection.
-
Fleet & Remote Management
Monitor status and coordinate multiple robots across large sites.
